The Silent Guardian of Digital Signals: Why the SN74LVC1G80DCKR is the Unsung Hero of Modern Electronics www.ic-stocks.com
- Author:Salmon Ye
- Source:www.ic-stocks.com
- Release on:2026-05-12
The Silent Guardian of Digital Signals: Why the SN74LVC1G80DCKR is the Unsung Hero of Modern Electronics
In the world of modern electronics, where every millimeter of PCB real estate is a battleground and power efficiency is the ultimate currency, selecting the right logic component often makes the difference between a "good" design and a "great" one.
While FPGAs and microcontrollers grab the headlines, the humble flip-flop remains the backbone of digital timing and data storage. Today, we want to spotlight a specific gem from Texas Instruments: the SN74LVC1G80DCKR.
If your design demands precision, versatility, and space-saving elegance, this single positive-edge-triggered D-type flip-flop is your new best friend.
The Power of "One"
Why dedicate a huge dual-in-line package when you just need one latching mechanism? The SN74LVC1G80DCKR understands this ethos perfectly.

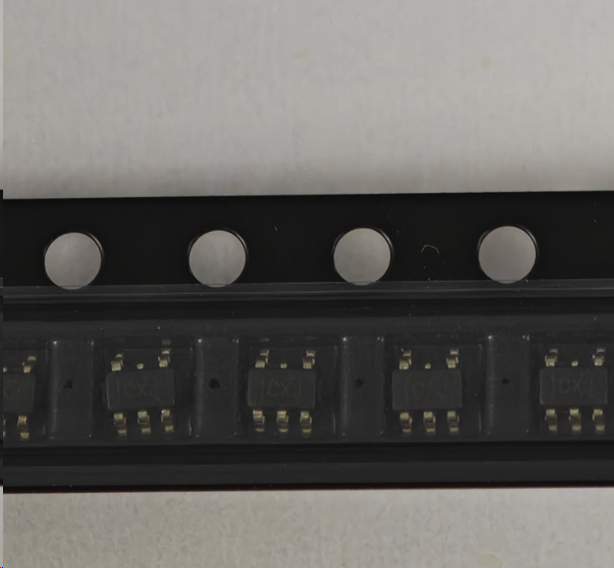

Housed in the ultra-compact SC-70-5 package (measuring just 2.00mm x 1.25mm), this device proves that great things come in small packages. Whether you are designing a portable medical device, a wearable, or a dense telecom switch, this IC fits where others simply cannot .
However, do not let its size fool you. This little component is a workhorse.
Bridging the Voltage Gap
One of the most frustrating challenges in modern design is voltage compatibility. How do you seamlessly interface a 1.8V sensor with a 5V legacy microcontroller?
The SN74LVC1G80DCKR answers this with a resounding "no problem." It supports a wide operating range of 1.65V to 5.5V . This wide tolerance allows it to act not just as a storage element, but as a down-translator (level shifter) without needing external components. It accepts 5V logic inputs even when running on a 3.3V supply, protecting your low-voltage logic while maintaining signal integrity.
Speed Without Sacrifice
In an age of high-speed data, delay is the enemy. This device boasts a maximum propagation delay of only 4.5 ns at 5V . With a maximum clock frequency of 160 MHz, it handles fast data streams with ease, making it suitable for everything from glitch-free button debouncing to managing high-speed communication busses .
Yet, at 160MHz, it remains incredibly polite to your power budget.
Quiescent current (Iq) is the silent killer of battery life. The SN74LVC1G80DCKR draws a mere 10 µA max . In standby or low-power modes, it essentially disappears from your power calculation spreadsheet.
The "Partial-Power-Down" Superpower
Consider a complex system with multiple voltage rails. What happens to your logic when one section powers down but the other stays on? Usually, you get damaging backflow current.
This chip features Ioff circuitry (Partial-Power-Down Mode). This feature "disables" the outputs when the device is powered down, preventing damaging current backflow through the device . It supports hot-swap and power-down isolation, making it a robust choice for high-reliability telecom and server applications.
Where Does It Shine?
The datasheet lists applications like Test & Measurement, Enterprise Switching, and Motor Drives, but the real-world scenarios are endless :
· Infrastructure: Holding reset lines stable during system power sequencing.
· Consumer: Creating precise delays or frequency division in portable audio.
· Industrial: Capturing the state of a rotary encoder or a button without CPU polling.
The Verdict
Texas Instruments has built a legacy on the 74-series logic, and the SN74LVC1G80DCKR is a modern evolution of that legacy. It offers 5V tolerant inputs, high drive strength (±32mA at 5V), and a temperature range of -40°C to +125°C, making it just as comfortable in an automotive engine bay as in a living room TV .
Don't let the simplicity fool you. When you need to capture a rising edge, store a single bit, or translate a voltage level without wasting board space, this tiny SC-70 chip is the quiet, reliable solution that veteran engineers trust.
Texas Instruments SN74LVC1G80DCKR. Small footprint. Big performance. Reliable logic.
